The following amplifiers are standard products available with short  delivery times. Please confirm with the factory for details on specific part numbers.
LPD2 amplifiers are a series of small low cost wideband products with the following characteristics :
+ from 3W to 30W output power, Class A or Class AB
+ wideband, 50ohms input/output., cascadable
+ single supply 28V or 48V.
+ aluminum base plate for heat dissipation
Machined housings; up to 50W Class AB operation
+ up to 50W output, narrowband and wideband
+ analog monitoring and control
+ sample output for RF output monitoring
+ Output circulator on AH0C models
+ High gain stabilized in temperature
+ Current, temperature monitoring
+ Analog and digital (USB) interface
+ Visual status

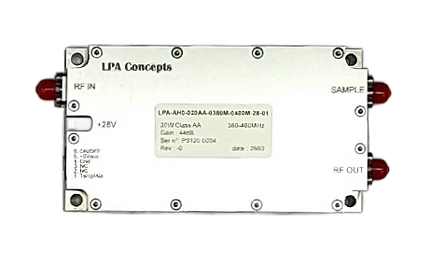

Machined housings; 10 to 20W Class A operation

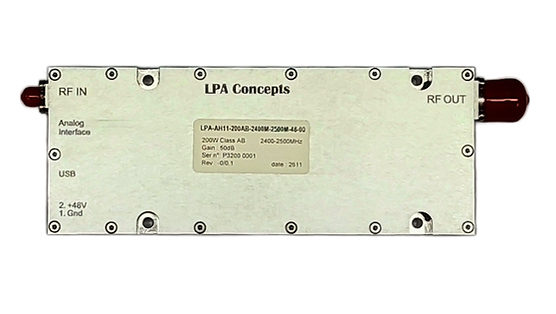

Up to 200W narrowband Class AB operation
+ ALC control
+ Analog and digital (USB) interface
+ Current/temperature/VSWR monitoring
+ Output Circulator with SD on high VSWR
+ compensated gain vs temperature
